Rex-Omni Technical Analysis

TL;DR: Rex-Omni extends Qwen2.5-VL-3B with coordinate tokenization — repurposing the last 1000 tokens as coordinate bins (0-999) to output structured [x0, y0, x1, y1] bboxes without adding parameters. Enables zero-shot detection, visual prompting, pointing, and OCR with a unified output format. Trained via SFT + GRPO with geometry-aware rewards that eliminate duplicate and large-box predictions.

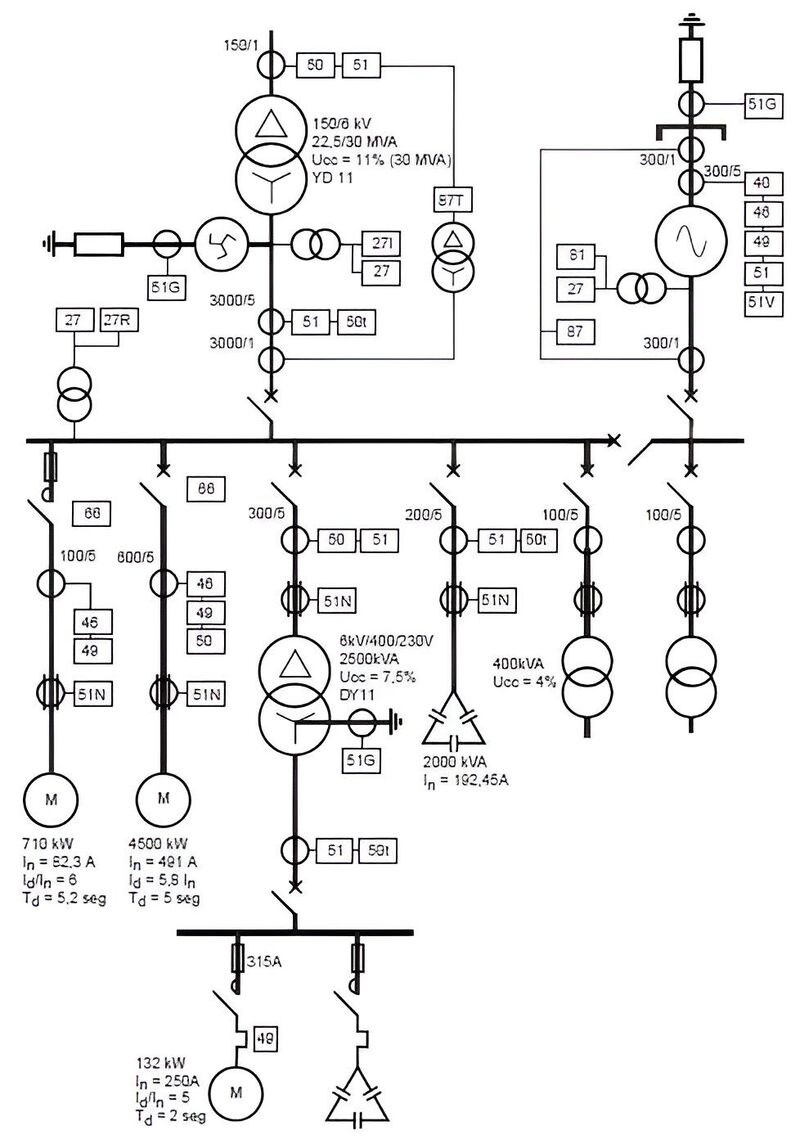

The Problem: Electrical Single-Line Diagrams

At work, I was tasked with coming up with a pipeline which would automatically detect components in electrical single-line diagrams (SLDs). These are the schematics you see in industrial control panels — like JIC or NFPA standard schemas.

The catch? Most object models fail at this task because the symbols are small, abstract, and context-dependent, unlike the textured, natural objects they’re trained to recognize. While MLLMs perform better, they are usually slow and cannot draw grounded bboxes around the objects even if they are able to identify the components correctly.

I needed a model that could:

1. Zero-shot detect objects it had never been trained on
2. Support grounded bounding boxes — precise coordinates
3. Handle visual prompting — show a reference symbol, ask “find more like this”
4. Do fast OCR on ratings labels (500KVA, 480V, 30A)
5. Be fine-tunable for my specific domain

This is where the rabbit hole began.

Backstory: Grounding DINO & SAM

I’d crossed paths with IDEA Lab before. While working on tagging-engine — my attempt at building an automatic fashion item tagger which could handle both images and videos — I stumbled across their work on Grounding DINO and Grounded SAM. These models could detect anything with just a text prompt. Zero-shot. No training required.

That was cool and all, and at the time I just created a pipeline using Grounding DINO and Fashion-Clip. But I never dug deeper into the whole process.

Fast forward to this SLD problem at work. I needed something more capable than what Grounding DINO offered. So I went back to IDEA Lab’s GitHub to see what else they’d cooked up.

That’s when I found it: Rex-Omni.

The paper had been released recently. It was everything Grounding DINO was, plus visual prompting, plus OCR, plus structured bounding box output, plus — crucially — the ability to fine-tune for my electrical symbol domain.

Most models could do some of what I needed, but none checked all the boxes. Rex-Omni was the only one that supported all my requirements out of the box.

Qwen2.5-VL architecture

Rex-Omni builds on Qwen2.5-VL-3B, so understanding the base architecture is crucial. Qwen2.5-VL is Alibaba’s multimodal model with three core components:

flowchart LR
    subgraph Vision["Vision Encoder (ViT)"]
        V[3D Conv<br/>for patches]
    end

    subgraph Merger["MLP Merger"]
        M[MLP]
    end

    subgraph LLM["LLM Decoder (Qwen2.5)"]
        L[MRoPE<br/>for positions]
    end

    V --> M --> L

Vision Encoder (ViT)

The vision encoder is a native-resolution Vision Transformer trained from scratch:

Key innovations:

• Native Dynamic Resolution: Handles varying image sizes (16 to 2,560 visual tokens)
• Window Attention: Linear complexity instead of quadratic, critical for high-resolution images
• Architectural Alignments: Uses SwiGLU and RMSNorm like Qwen2.5 LLM

MRoPE (Multimodal Rotary Position Embedding)

Unlike standard 1D RoPE, MRoPE uses 3D embeddings:

Standard RoPE:     position_id → 1D embedding
MRoPE:             position_id → 3D embedding (temporal, height, width)

For Images:
- Height position: encodes vertical spatial information
- Width position: encodes horizontal spatial information
- Temporal position: not used (images are static)

This allows the model to distinguish between spatial and temporal positions — critical for understanding where things are in an image. The vision-language merger is a simple two-layer MLP with GELU activation that projects ViT’s 1024-dim features to the LLM’s 1536-dim embeddings.

Token Count by Resolution

Why Qwen2.5-VL Alone Wasn’t Enough

While Qwen2.5-VL is excellent for general VQA and OCR, it has limitations for my use case:

# Qwen2.5-VL can do this:
response = model.chat(
    tokenizer,
    image,
    "What objects are in this image?"
)
# Returns: "There is a transformer and a breaker in the image."

# But it CANNOT do this:
response = model.chat(
    tokenizer,
    image,
    "Detect transformers. Output bounding box in [x0, y0, x1, y1] format."
)
# Returns: "The transformer is located at x=347, y=500..."
# (Free-form text, not structured coordinates - hard to parse!)

Problems:

1. No structured coordinate output: Coordinates come as free-form text
2. No visual prompting: Can’t show a reference and ask “find more like this”
3. Token inefficiency: “347” = 3 tokens vs. coordinate token = 1 token
4. No grounding: Can’t get precise bounding box coordinates

Enter Rex-Omni

Rex-Omni (from IDEA - International Digital Economy Academy) takes Qwen2.5-VL-3B and adds one crucial innovation: Coordinate Tokenization.

Idea: using Coordinates as Tokens

Instead of treating coordinates as regression values, Rex-Omni treats them as discrete tokens in the vocabulary:

1. Normalize coordinates to [0, 1] range
   x_norm = x / image_width
   y_norm = y / image_height

2. Map to discrete bins [0, 999]
   x_bin = int(x_norm * 999)
   y_bin = int(y_norm * 999)

3. Convert to special tokens
   <347>, <500>, <980>, <987>

The key insight: no new parameters added. The last 1000 tokens of Qwen2.5-VL’s vocabulary are repurposed as coordinate tokens.

flowchart LR
    subgraph Vocab["Qwen2.5-VL Vocabulary (152k tokens)"]
        A["... token_151521<br/>token_151522<br/>..."] -->|"repurposed"| B["<0><1>...<999>"]
    end

    style A fill:#0e0a14,stroke:#5f4e7d,color:#f5f3ff
    style B fill:#161022,stroke:#5f4e7d,color:#f5f3ff

Structured Output Format

Rex-Omni uses special tokens for structured spatial output:

<|object_ref_start|>transformer<|object_ref_end|><|box_start|><347><500><980><987><|box_end|>

Task Unification

The same coordinate prediction handles diverse vision tasks:

This is exactly what I needed — one model, multiple tasks.

Zero-Shot Performance

Rex-Omni’s zero-shot detection results are impressive:

The Dense200 benchmark is particularly interesting — it’s a dense scene with many objects, which is similar to what I’ll face with electrical diagrams that can have dozens of components in a single panel.

Training Pipeline: SFT + GRPO

Rex-Omni uses a two-stage training approach:

flowchart TD
    subgraph Stage1["Stage 1: SFT"]
        D1["22M images with<br/>bounding box annotations"]
        L1["Cross-entropy loss<br/>on token prediction"]
        O1["Output: Structured<br/>coordinate tokens"]

        D1 --> L1 --> O1
    end

    O1 -->|"proceed"| Stage2

    subgraph Stage2["Stage 2: GRPO"]
        R["Geometry-aware rewards<br/>(IoU F1, point-in-box)"]
        E["Eliminates duplicate<br/>predictions"]
        B["Reduces large-box<br/>predictions"]

        R --> E
        R --> B
    end

    style Stage1 fill:#0e0a14,stroke:#5f4e7d,color:#f5f3ff
    style Stage2 fill:#161022,stroke:#5f4e7d,color:#f5f3ff

SFT uses teacher forcing — the model sees ground-truth tokens at each step. This creates a train-inference gap that manifests as two characteristic failure modes: duplicate predictions (the same coordinates generated dozens of times) and large-box predictions (one oversized box covering multiple objects, affecting 20.5% of Dense200 predictions).

GRPO fixes this by having the model generate complete predictions autonomously and evaluating them with geometry-aware rewards:

# For Detection: Box IoU F1 Score
def box_iou_reward_func(pred_str, gt_dict):
    pred_boxes = parse_coordinates(pred_str)
    gt_boxes = gt_dict['boxes']

    precision = mean([max_iou(p, gt) for p in pred_boxes for gt in gt_boxes])
    recall = mean([max_iou(g, p) for g in gt_boxes for p in pred_boxes])
    f1 = 2 * precision * recall / (precision + recall)
    return f1  # Continuous reward [0, 1]

# For Pointing: Binary point-in-box
reward = "point_in_box"  # 1.0 if point inside GT box, 0.0 otherwise

The key insight: GRPO isn’t about raw coordinate precision — SFT already achieves 63.0 F1 on fixed detections. GRPO eliminates the behavioral issues that SFT cannot address because it always trains on ground-truth prefixes.

Training Data: The Data Engine

Rex-Omni’s 22M training images come from three automated data engines:

Grounding Data Engine: Captions generated by Qwen2.5-VL-7B → noun phrases extracted with SpaCy → DINO-X generates bounding boxes.

Referring Data Engine: Referring expressions generated with Qwen2.5-VL-7B → Molmo predicts points → SAM produces segmentation masks → geometric intersection matches points to boxes. Output: ~3M fully automated referring expressions.

Additional Engines: Pointing (box centers), OCR (PaddleOCR for polygonal text boundaries).

My Use Case: Electrical Single-Line Diagrams

These diagrams have:

• Standardized symbols: NFPA 79 and JIC EM-1 standards
• Labels and ratings: “500KVA”, “480V”, “30A”
• Complex layouts: Dense panels with many components
• Text orientation: Often rotated or stacked

I need Rex-Omni to:

1. Detect transformer symbols, breaker symbols, disconnect switches
2. OCR the ratings/labels next to each component
3. Visual prompting: show a “reference” breaker, find all breakers

Fine-tuning Strategy

For domain adaptation to electrical diagrams, I’ll use full fine-tuning with Liger Kernel:

from transformers import Qwen2_5_VLForConditionalGeneration, AutoProcessor
from liger_kernel.transformers import apply_liger_kernel_to_qwen2_vl

model = Qwen2_5_VLForConditionalGeneration.from_pretrained(
    "IDEA-Research/Rex-Omni",
    torch_dtype="auto",
    device_map="auto",
)

apply_liger_kernel_to_qwen2_vl(
    rope=True,
    mlp_swiglu=True,
    cross_entropy=True,
    fused_linear=True,
)

Dataset Requirements

For fine-tuning, I’ll need labeled images with bounding box annotations and varied task prompts:

GROUNDING_SINGLE_REGION_STAGE_XYXY = [
    "Detect [OBJ].",
    "detect [OBJ].",
    "Please detect [OBJ] in this image.",
    "Detect [OBJ]. Output the bounding box coordinates in [x0, y0, x1, y1] format.",
    "Find [OBJ] in the image. Output the bounding box coordinates.",
    # ... 40+ varied prompts
]

What Actually Gets Trained

Here’s a crucial detail often missed: the coordinate token embeddings are NOT modified during training. Rex-Omni repurposes the last 1000 tokens from Qwen2.5-VL’s existing vocabulary — no new parameters added.

Per-Component Learning Rates

Unlike standard LLM fine-tuning, Rex-Omni uses different learning rates per module:

torchrun train.py \
    --config configs/sft.py \
    --deepspeed scripts/zero2.json \
    --bf16 \
    --num_train_epochs 1 \
    --per_device_train_batch_size 4 \
    --gradient_accumulation_steps 4 \
    --learning_rate 2e-5 \
    --mm_projector_lr 2e-5 \
    --vision_tower_lr 2e-6 \
    --optim adamw_torch \
    --warmup_ratio 0.03 \
    --weight_decay 0.01 \
    --max_grad_norm 1 \
    --lr_scheduler_type "cosine" \
    --gradient_checkpointing True

Memory Optimization

What Makes Rex-Omni Fine-tuning Unique

Rex-Omni’s fine-tuning pipeline has several aspects that do not follow standard sft/rl as done via unsloth or axolotl:

1. Per-Component Fine-tuning Flags

--tune_mm_vision True   # Vision encoder (ViT)
--tune_mm_mlp True      # Multimodal projector (MLP merger)
--tune_mm_llm True      # LLM decoder + LM head

This granular control isn’t available in standard fine-tuning tools.

2. Soft Cross-Entropy Loss for Coordinates

Instead of treating coordinate prediction as hard classification (predict exact bin), Rex-Omni uses a Gaussian soft target. If the model predicts bin 347 but the ground truth is 350 and they’re within max_tolerance_pixel (default: 10 pixels), the loss is relaxed. This is critical — a 5-pixel error on a 1000px image is negligible, but standard cross-entropy treats it the same as a 500-pixel error.

use_soft_ce_for_coords: bool = field(default=False)
coord_sigma: float = field(default=2.0)
max_tolerance_pixel: int = field(default=10)

3. Custom TSV Dataset Format

Rex-Omni uses a custom TSV format with separate image and annotation files plus byte-offset indexes for fast random access. This enables efficient loading of millions of images without storing them all in memory, and supports negative samples ({"bbox": null}) to train the model to output “None” for absent categories — reducing hallucinations.

4. Multi-Task Training

The official config trains on multiple tasks simultaneously — grounding, pointing, visual prompting, OCR — in a single run. The model learns to handle all tasks with a unified output format.

5. GRPO with Geometry-Aware Rewards

Standard RLHF uses reward models. Rex-Omni’s GRPO uses task-specific spatial reward functions (Box IoU F1 for detection, point-in-box for pointing) that directly measure geometric accuracy.

Summary: What You Can’t Do with Unsloth/LoRA

Known Issues to Watch

Issue #158: Tokenization Bug [GitHub]

There’s a known bug where tokens are added instead of replaced, causing many-to-one mapping:

# WRONG: Multiple tokens map to the same ID
('âĪī', 150643), ('<0>', 150643),  # CONFLICT!

The embedding matrix has fewer rows (151,936) than the tokenizer vocabulary (152,665), causing this conflict.

Issue #22: The Fix [GitHub]

Use the official token replacement code — replace the last 1000 tokens, don’t add new ones. Also critical:

processor = AutoProcessor.from_pretrained(
    "IDEA-Research/Rex-Omni",
    use_fast=False  # IMPORTANT: fast tokenizer causes issues
)

Issue #147: Loss Expectations [GitHub]

Loss in the range 0.6-0.8 is normal for Rex-Omni SFT. As the author (Mountchicken) stated: “Loss of 0.6-0.8 is already very good — evaluate using metrics or demo the model instead.”

Issue #57: Vocab Size Mismatch [GitHub]

model.config.vocab_size (151,936) vs len(tokenizer) (152,655). This is inherent to Qwen2.5-VL itself, not a Rex-Omni bug.

References

• Paper: Detect Anything via Next Point Prediction (arXiv:2510.12798)
• Project: rex-omni.github.io
• GitHub: IDEA-Research/Rex-Omni
• Model: IDEA-Research/Rex-Omni
• Quantized: Rex-Omni-AWQ
• Fine-tuning: 2U1/Qwen-VL-Series-Finetune — SFT, DPO, GRPO, CLS for Qwen VL series. A few gotchas worth noting:
  • QLoRA + vision: don’t combine quantization (--bits 4/8) with vision training — use --bits 16 if training vision modules
  • QLoRA + Liger: disable Liger when using QLoRA
  • Learning rates: vision_model works better at 5–10x smaller LR than language_model (consistent with Rex-Omni’s official config)
  • Top-k unfreeze: if using --unfreeze_topk_llm or --unfreeze_topk_vision, keep the base module frozen first
  • DeepSpeed: zero2 is usually faster and more stable than zero3, at the cost of more memory

Now what?

Now I just need to label a few thousand electrical diagrams. What’s the worst that could happen 😭🥀

Related: tagging-engine - Where I first encountered Grounding DINO/SAM
